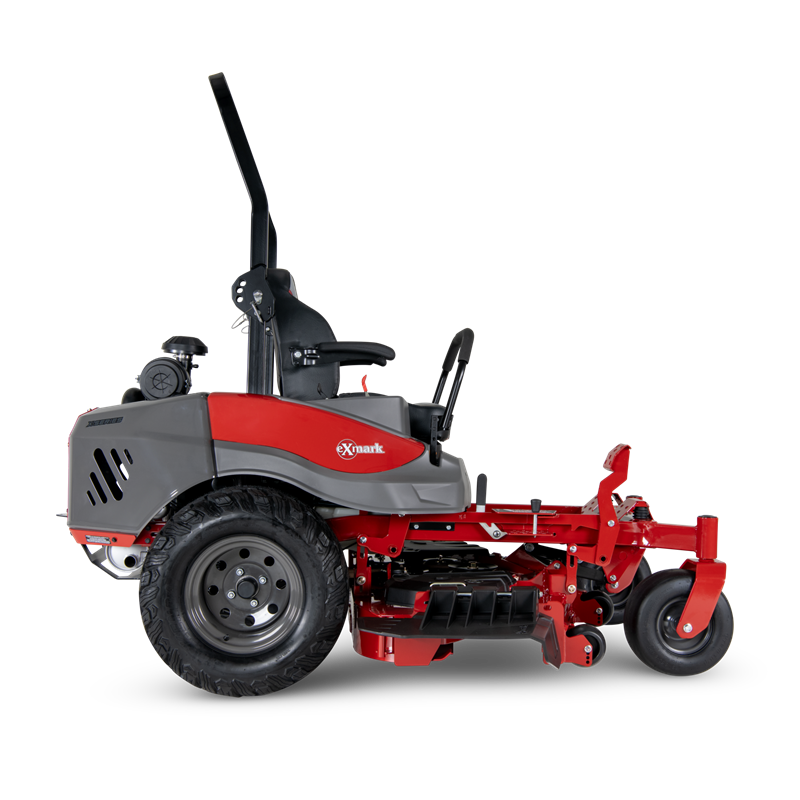

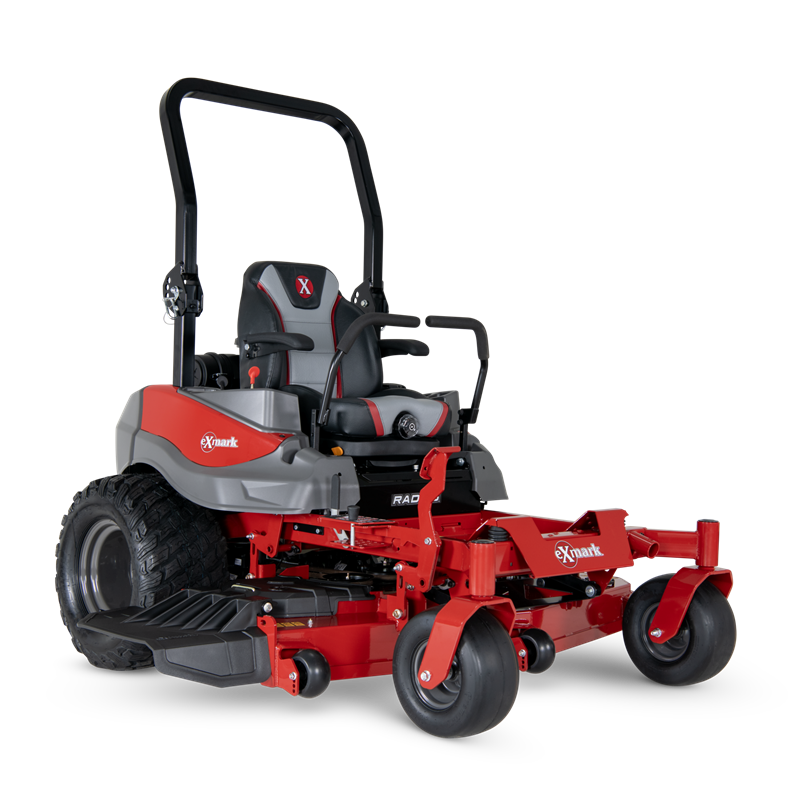

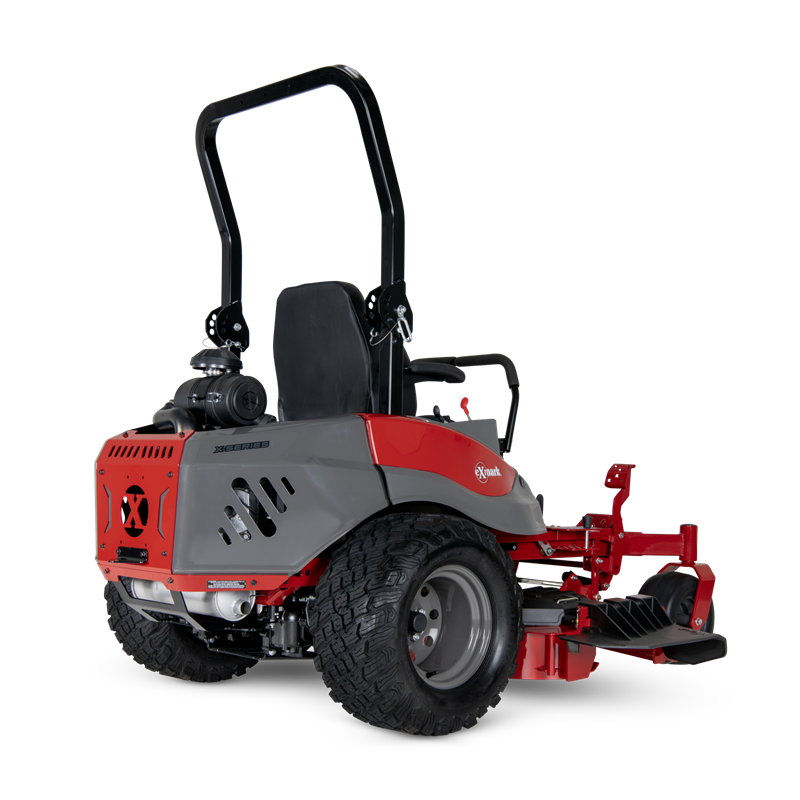

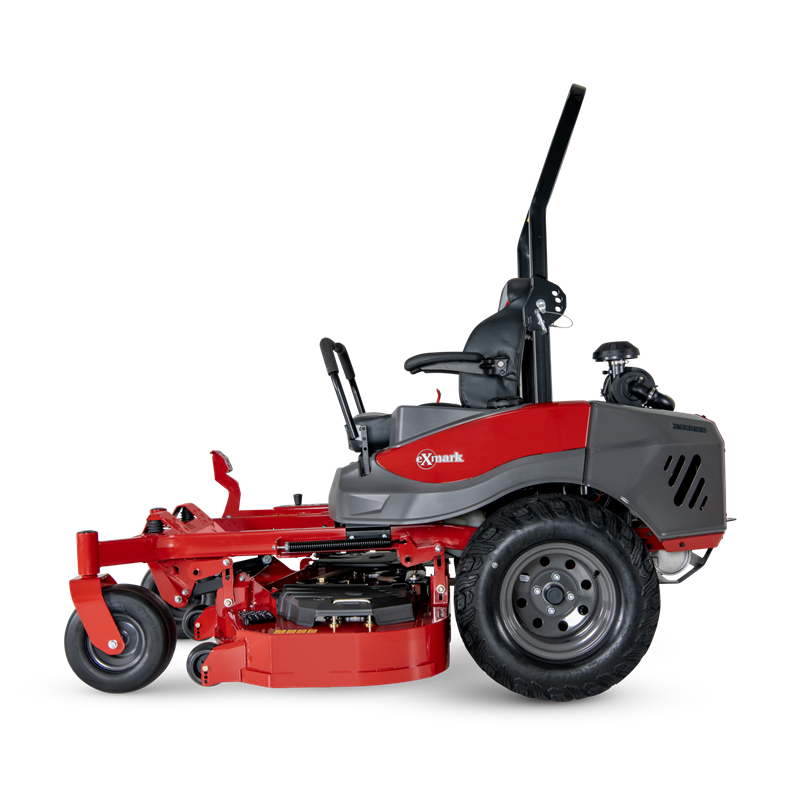

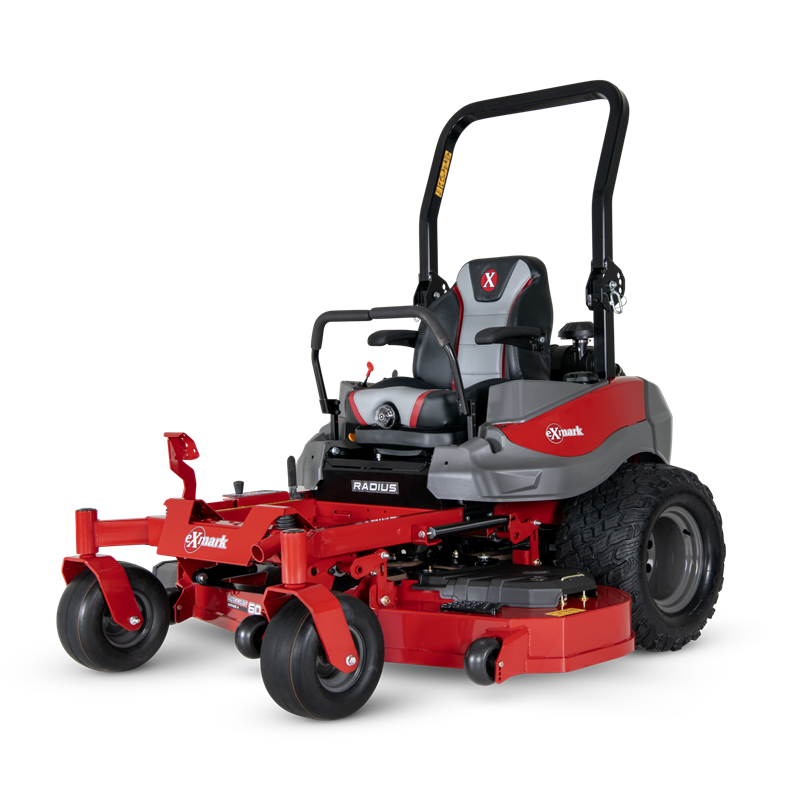

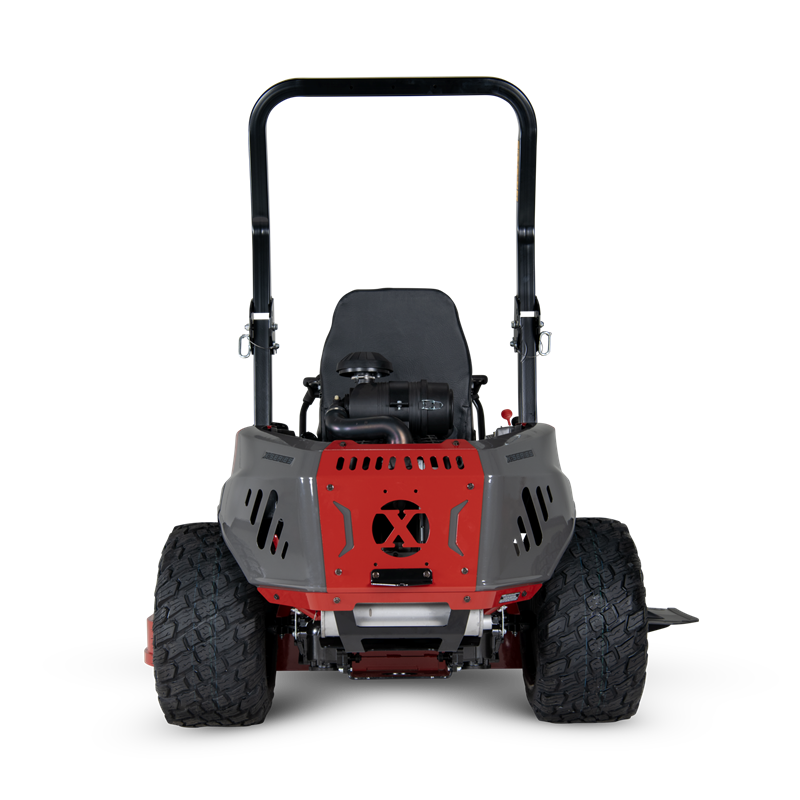

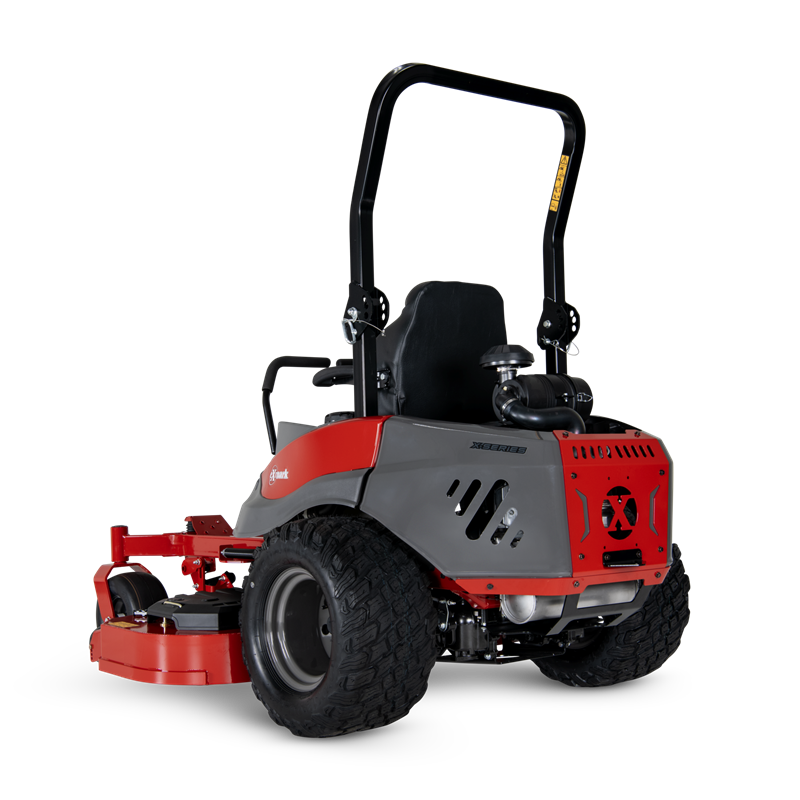

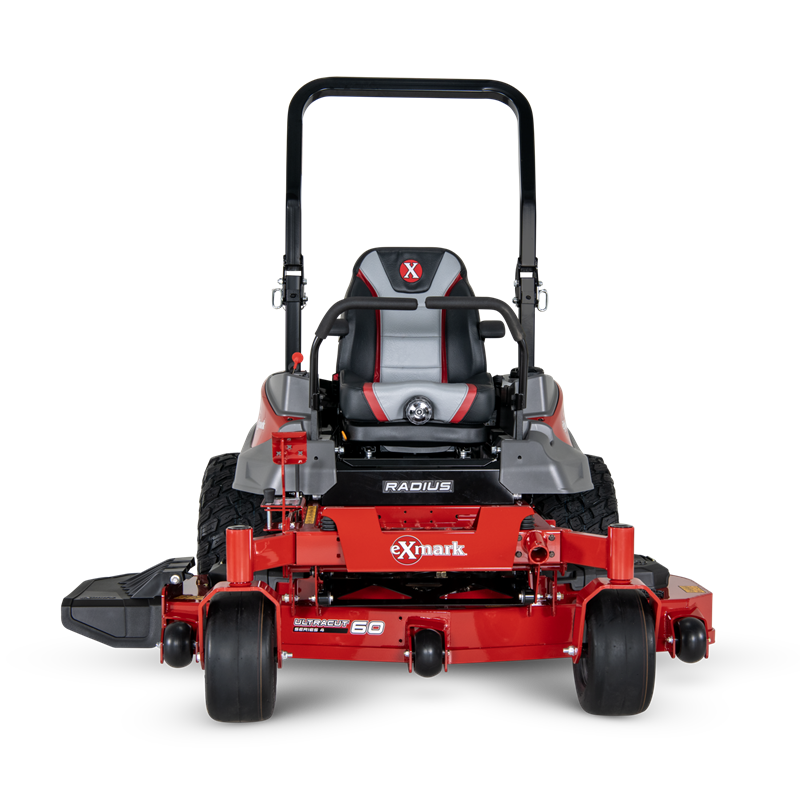

Exmark Radius X-Series with 24.5HP* Kawasaki FX751V Engine and 60″ UltraCut Series 4 Deck (Available Spring 2027)

Contact us for price

Stock status: Call Store for Availability

If you’re looking for the power and productivity of a premium commercial mower on a budget, you’re looking for the new Radius X-Series. It combines features first proven on our premier Lazer Z models with the unbeatable value you’ve come to expect from Radius.Choose from 52- or 60-inch UltraCut Series 4 side-discharge cutting decks and premium Kawasaki commercial engines. Integrated high-capacity HydroGear transmissions work with aggressive 24-inch Kenda drive tires to deliver unmatched traction and control, with ground speeds of up to 10 mph. Large semi-pneumatic caster tires, upgraded cast steel caster forks and tapered caster pivot bearings provide years of maintenance-free performance. And with an adjustable full-suspension operator seat and isolated floor pan, the Radius X-Series delivers enhanced operator comfort that’s ideal for long work days.Looking for more power, larger cutting decks and cutting-edge innovation and productivity? Check out our premier Lazer Z family of commercial zero-turn mowers.New for 2027 Radius X-Series mowers will be available in Spring 2027. Watch video for a preview of what’s next.

Call Us Now Financing Offers

Specs

UPC

193308247281

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.375″ thick caster yoke arms.

Front Caster Tires

13 x 6.5-6, smooth tread, pneumatic.

Drive Tires

24 x 12-12 K3012

Safety Package

Operator Presence Controls (OPC) and drive system interlock.

Parking Brake

Automatic-actuated pawl brake.

Tractor Frame

Unibody, welded, heavy-duty 1.5″ x 3″ tubular steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 7.75″-diameter cutter housing with 25mm (.98″) diameter spindle shaft.

Cup Holder

Yes

Electrical

12-volt battery with 15-amp alternator.

Standard Features

Engine hour meter, cup holder, tow hitch and jack receiver, supspension seat

Seat

Deluxe suspension (adjustable spring suspension) seat with high back, molded foam flip-up armrests, and integral safety switch

Optional Features

Hour meter, suspension seat and armrests

Engine Brand

Kawasaki

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Model

FX751V

Engine Displacement

852

Speed

Infinitely variable speed selection from 0–10.0 mph forward, 0–5.0 mph reverse

Engine Series

V-Twin

Fuel System

Carbureted

Transmission

Hydrostatic

Engine Spec

FX751V-AS12-R

Engine Speed

3,820 rpm

Drive

Hydro-Drive

Air Filter

Cyclonic Air Cleaner

Fuel Capacity

7-gallon single fuel tank with single fill location

Drive Description

Dual Hydro Gear ZT3400, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.

PTO Engagement

Electromagnetic 105-ft-lb clutch

Fuel Type

Gas Carbureted

Fuel Indicator

Float gauge

Drive Wheel Release

Allows unit movement without engine running.

Deck Lift

Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

ROPS

2-post foldable ROPS standard with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.

Width / Cutting Deck

60″

Deck Construction

10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.

Cutting Heights

1.5″ to 5.0″ in 0.25″ increments

Blade Tip Speed

Approximately 18,500 fpm

Blades

3 Blades at 20.50″ Length

Width

72.3″

Height

73.7″

Curb Weight

962

Length

83.9″
