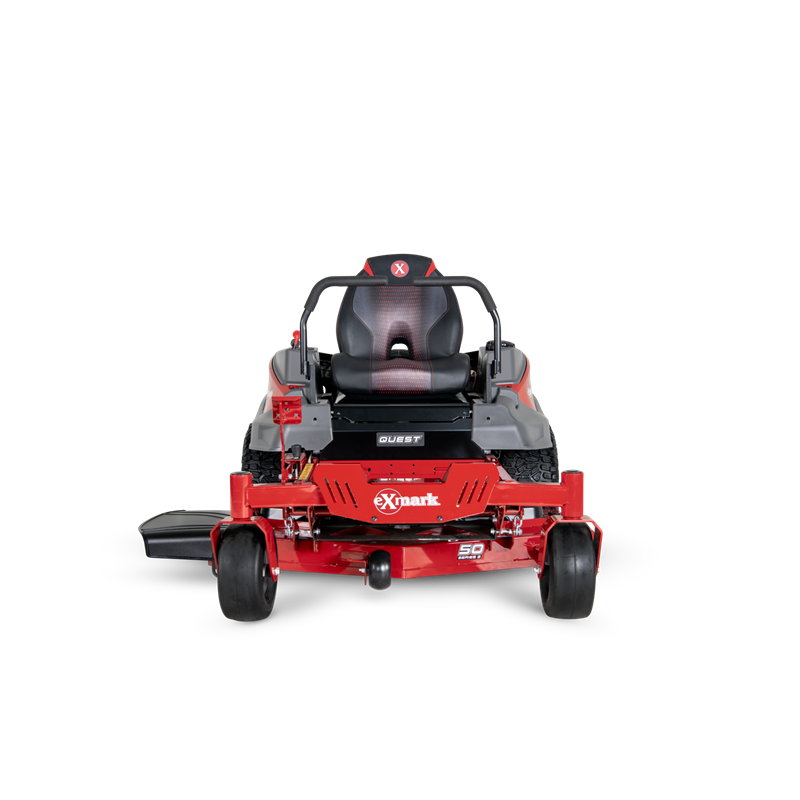

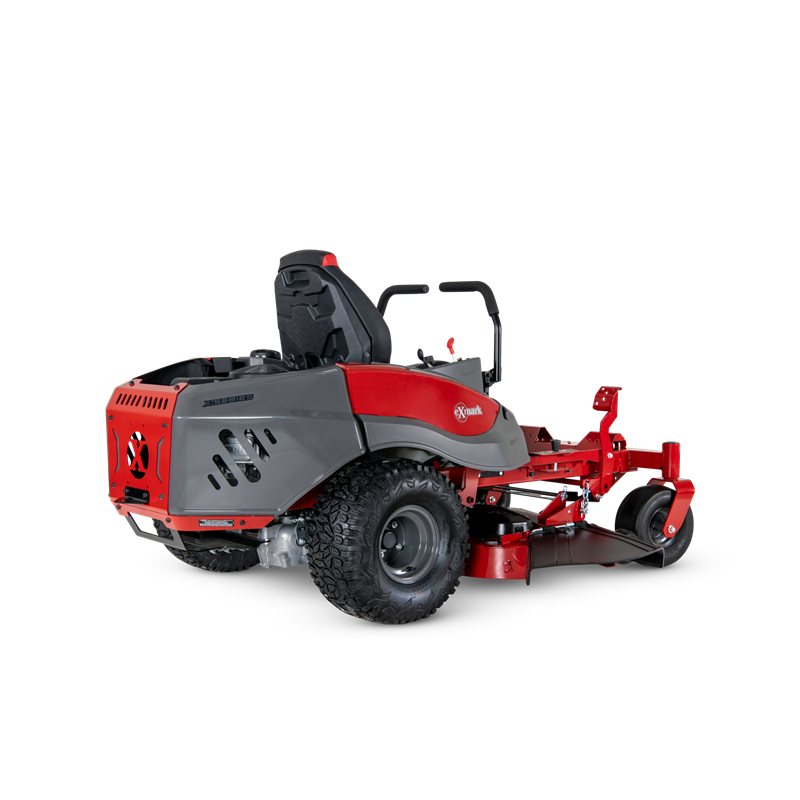

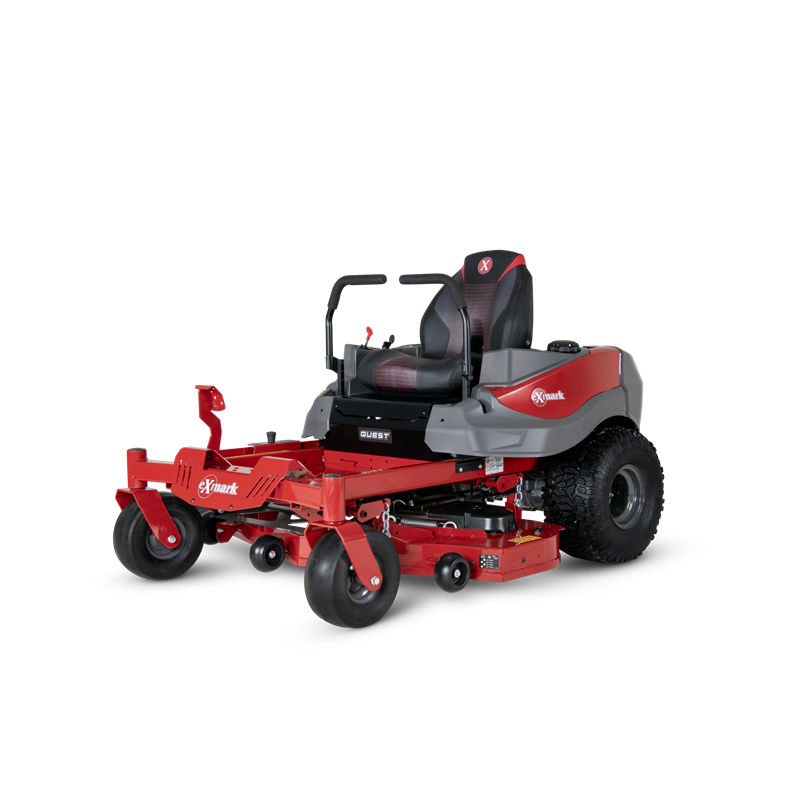

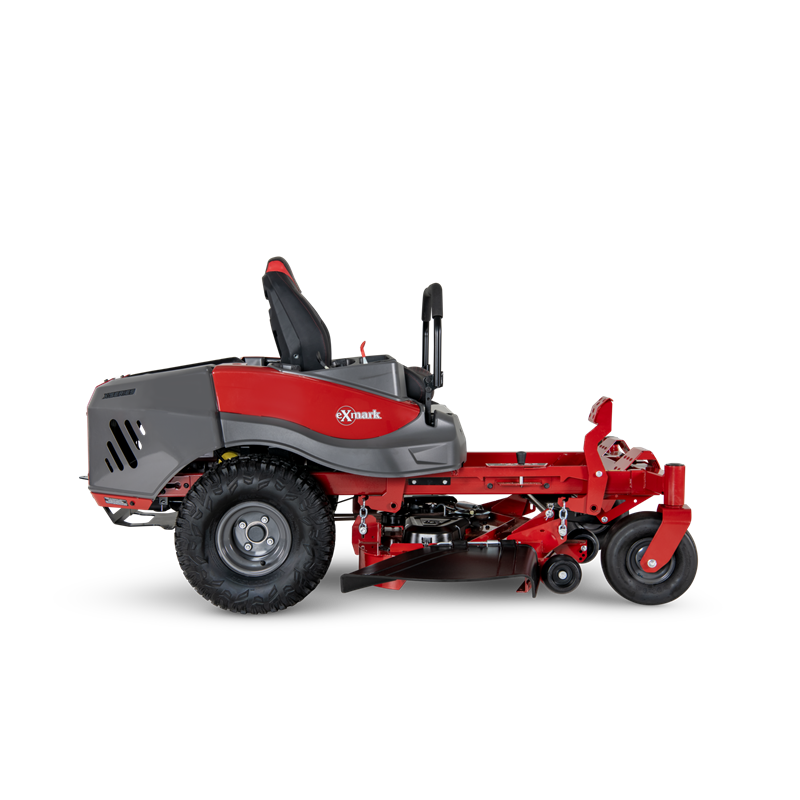

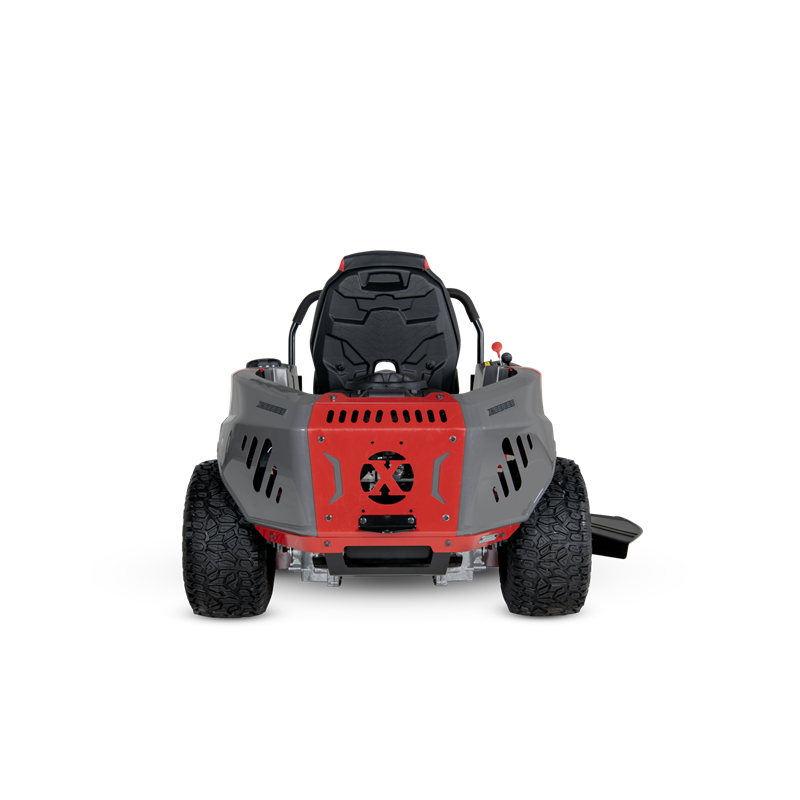

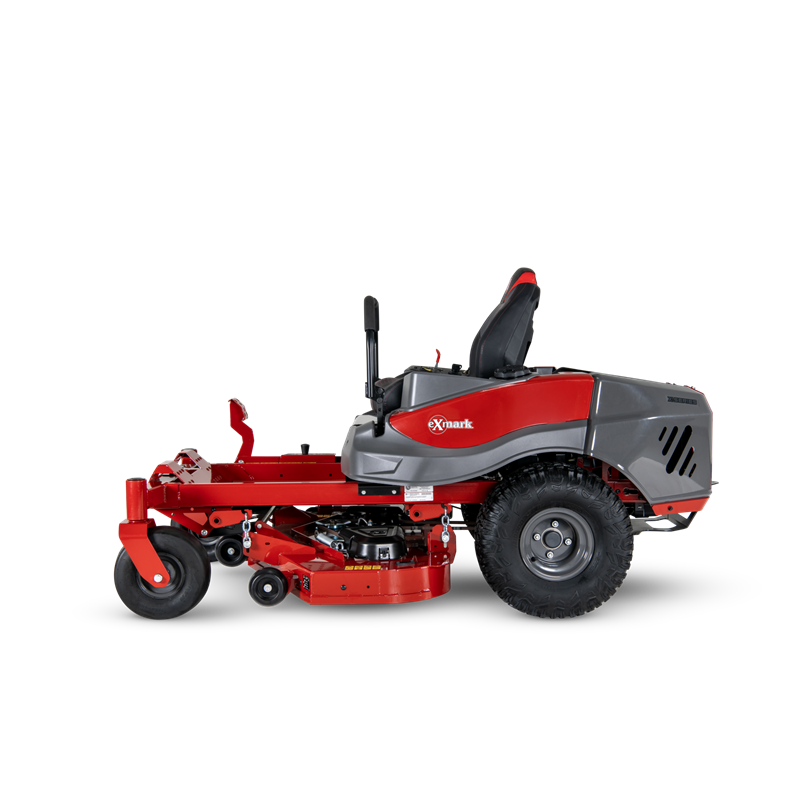

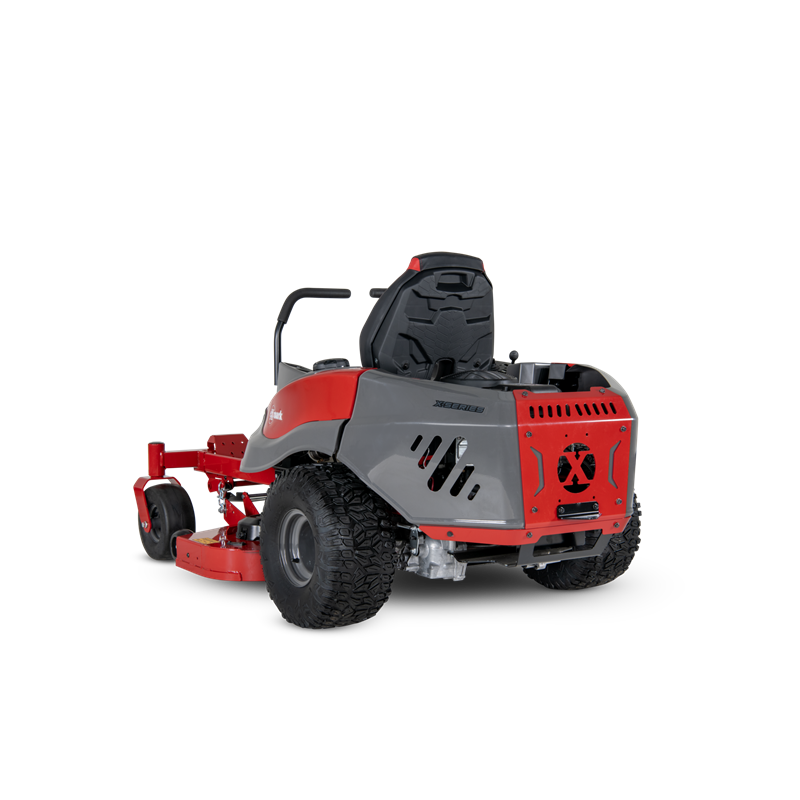

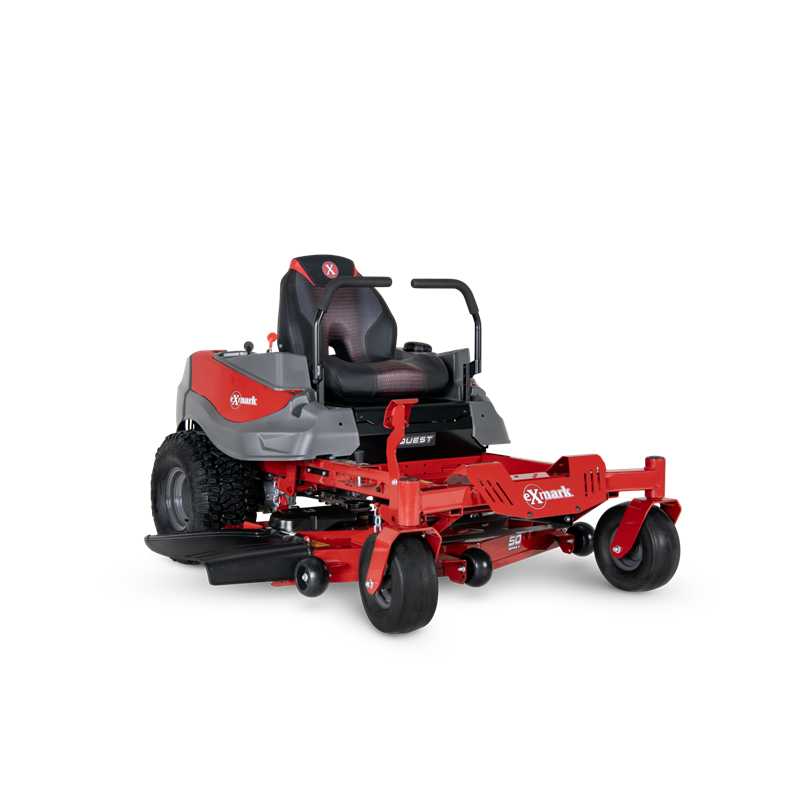

Quest X-Series with 24 HP* Exmark Engine and 50″ Series 2 Fabricated Deck (Available Spring 2027)

Contact us for price

Stock status: Call Store for Availability

Looking for a residential zero-turn mower with commercial features and performance? You’ve found it in the new Quest X-Series. The powerful Kohler engine, upgraded 48-inch UltraCut Series 3 cutting deck and heavy-duty Hydro-Gear transmission enable Quest X-Series to cut at up to 8 mph. When combined with the incredible maneuverability of the low center of gravity frame design and the smooth rolling of the large drive and caster tires, Quest X-Series offers an unbeatable combination of performance and value.A new armrest-equipped operator seat provides a smooth ride over bumpy lawns, while a deeper floor pan offers increased legroom for the operator. A standard deck step is included to ease mounting and dismounting the machine, while an integrated hitch and tools-free belt shields ease access for service and maintenance. However, with just two annual grease points and low-maintenance integrated hydro transmissions, servicing the Quest X-Series isn’t something you’ll need to do often. That’s more time for you to do the things you love.If you’re looking for even more power and performance, check out our Radius line of zero-turn riding mowers.New for 2027 Quest X-Series mowers will be available in Spring 2027. Watch video for a preview of what’s next.

Call Us Now Financing Offers

Specs

UPC

193308247311

Starter

Electric

Steering Control

Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.

Caster Forks

.25″ thick caster yoke arms.

Front Caster Tires

12×6-5 smooth tread, pneumatic

Drive Tires

20×10-8 Voodoo

Safety Package

Operator Presence Controls (OPC) and drive system interlock.

Parking Brake

Automatic-actuated pawl brake.

Tractor Frame

Unibody, riveted 10-guage steel.

Blade Spindles

No maintenance, sealed and non-greasable spindles; 5.50″-diameter cutter housing with 17mm (.67″) diameter spindle shaft.

Cup Holder

Yes

Electrical

12 volt battery with 12-amp alternator

Standard Features

Cup holder, hitch and foot lift assist

Seat

18″ tall 5″ of travel

Optional Features

Hour meter and seat armrests

Engine Brand

Exmark

Transmission Brand

Hydro-Gear

Transmission Speeds

Infinitely Variable

Engine Model

724

Engine Displacement

724

Engine Series

V-Twin

Fuel System

Carbureted

Speed

Infinitely variable speed selection from 0–7.0 mph forward, 0–5.0 mph reverse

Transmission

Hydrostatic

Drive

Hydro-Drive

Engine Spec

44N8770033G1

Engine Speed

3300

Air Filter

Cartridge Air Cleaner

Fuel Capacity

5-gallon single fuel tank with single fill location

Drive Description

Two Hydro-Gear ZT-2200 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir

Fuel Type

Gas Carbureted

PTO Engagement

Electromagnetic 105-ft-lb clutch

Drive Wheel Release

Allows unit movement without engine running.

Fuel Indicator

Translucent Visual

Deck Lift

Standard; hand lever, with foot assist deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.

Carb Compliant

No

ROPS

Optional Rigid ROPS with seat belt and latch.

Deck Style

Floating Deck

Deck Style Description

Series 2 fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.

Width / Cutting Deck

50″

Deck Construction

10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper. 3 point suspension.

Cutting Heights

1.5″ to 4.5″ in 0.5″ increments

Blade Tip Speed

Approximately 18,500 fpm

Blades

3 Blades at 17.50″ Length

Width

61.5

Height

45.0″

Curb Weight

640

Length

80.0″
